Preprocessing

To preprocess planet data into the necessary structure, you can use the following command:

[uv run] darts preprocess-planet-train-data --your-args-here ...

This will run the v2 preprocessing used by the v2 segmentation pipeline, but instead of passing the preprocessed data it creates patches of a fixed size and stores them into the data.zarr array. Further, it will also create the necessary metadata, config and labels files.

The final train data is saved to disk in form of zarr arrays with dimensions [n, c, h, w] and [n, h, w] for the labels respectivly, with chunksizes of n=1. Hence, every sample is saved in a separate chunk and therefore in a seperate file on disk, but all managed by zarr.

The preprocessing is done with the same components used in the v2 segmentation pipeline. Hence, the same configuration options are available.

You can also use the underlying function directly:

darts.training.preprocess_planet_train_data

preprocess_planet_train_data(
    *,
    data_dir: pathlib.Path,
    labels_dir: pathlib.Path,
    train_data_dir: pathlib.Path,
    arcticdem_dir: pathlib.Path,
    tcvis_dir: pathlib.Path,
    admin_dir: pathlib.Path,
    preprocess_cache: pathlib.Path | None = None,
    force_preprocess: bool = False,
    append: bool = True,
    device: typing.Literal["cuda", "cpu", "auto"]
    | int
    | None = None,
    ee_project: str | None = None,
    ee_use_highvolume: bool = True,
    tpi_outer_radius: int = 100,
    tpi_inner_radius: int = 0,
    patch_size: int = 1024,
    overlap: int = 16,
    exclude_nopositive: bool = False,
    exclude_nan: bool = True,
    mask_erosion_size: int = 3,
)

Preprocess Planet data for training.

The data is split into a cross-validation, a validation-test and a test set:

- `cross-val` is meant to be used for train and validation
- `val-test` (5%) random leave-out for testing the randomness distribution shift of the data
- `test` leave-out region for testing the spatial distribution shift of the data

Each split is stored as a zarr group, containing a x and a y dataarray. The x dataarray contains the input data with the shape (n_patches, n_bands, patch_size, patch_size). The y dataarray contains the labels with the shape (n_patches, patch_size, patch_size). Both dataarrays are chunked along the n_patches dimension. This results in super fast random access to the data, because each sample / patch is stored in a separate chunk and therefore in a separate file.

Through the parameters test_val_split and test_regions, the test and validation split can be controlled. To test_regions can a list of admin 1 or admin 2 region names, based on the region shapefile maintained by https://github.com/wmgeolab/geoBoundaries, be supplied to remove intersecting scenes from the dataset and put them in the test-split. With the test_val_split parameter, the ratio between further splitting of a test-validation set can be controlled.

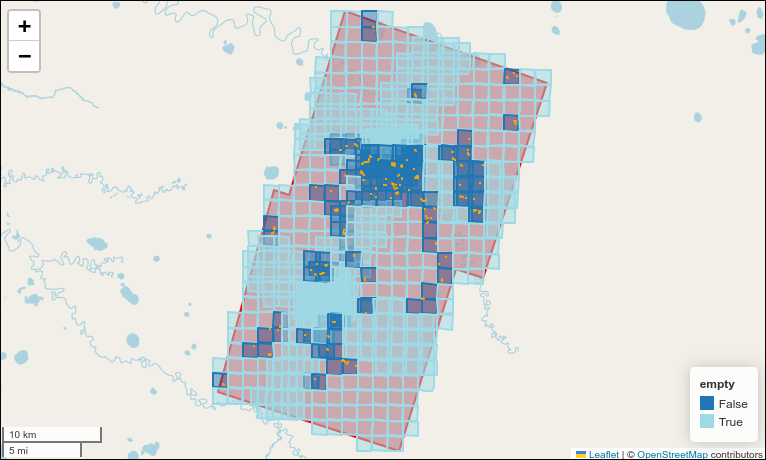

Through exclude_nopositve and exclude_nan, respective patches can be excluded from the final data.

Further, a config.toml file is saved in the train_data_dir containing the configuration used for the preprocessing. Addionally, a labels.geojson file is saved in the train_data_dir containing the joined labels geometries used for the creation of the binarized label-masks, containing also information about the split via the mode column.

The final directory structure of train_data_dir will look like this:

train_data_dir/
├── config.toml
├── cross-val.zarr/
├── test.zarr/
├── val-test.zarr/
└── labels.geojson

Parameters:

• data_dir (pathlib.Path) –

  The directory containing the Planet scenes and orthotiles.

• labels_dir (pathlib.Path) –

  The directory containing the labels and footprints / extents.

• train_data_dir (pathlib.Path) –

  The "output" directory where the tensors are written to.

• arcticdem_dir (pathlib.Path) –

  The directory containing the ArcticDEM data (the datacube and the extent files). Will be created and downloaded if it does not exist.

• tcvis_dir (pathlib.Path) –

  The directory containing the TCVis data.

• admin_dir (pathlib.Path) –

  The directory containing the admin files.

• preprocess_cache (pathlib.Path, default: None ) –

  The directory to store the preprocessed data. Defaults to None.

• force_preprocess (bool, default: False ) –

  Whether to force the preprocessing of the data. Defaults to False.

• append (bool, default: True ) –

  Whether to append the data to the existing data. Defaults to True.

• device (typing.Literal['cuda', 'cpu'] | int, default: None ) –

  The device to run the model on. If "cuda" take the first device (0), if int take the specified device. If "auto" try to automatically select a free GPU (<50% memory usage). Defaults to "cuda" if available, else "cpu".

• ee_project (str, default: None ) –

  The Earth Engine project ID or number to use. May be omitted if project is defined within persistent API credentials obtained via earthengine authenticate.

• ee_use_highvolume (bool, default: True ) –

  Whether to use the high volume server (https://earthengine-highvolume.googleapis.com).

• tpi_outer_radius (int, default: 100 ) –

  The outer radius of the annulus kernel for the tpi calculation in m. Defaults to 100m.

• tpi_inner_radius (int, default: 0 ) –

  The inner radius of the annulus kernel for the tpi calculation in m. Defaults to 0.

• patch_size (int, default: 1024 ) –

  The patch size to use for inference. Defaults to 1024.

• overlap (int, default: 16 ) –

  The overlap to use for inference. Defaults to 16.

• exclude_nopositive (bool, default: False ) –

  Whether to exclude patches where the labels do not contain positives. Defaults to False.

• exclude_nan (bool, default: True ) –

  Whether to exclude patches where the input data has nan values. Defaults to True.

• mask_erosion_size (int, default: 3 ) –

  The size of the disk to use for mask erosion and the edge-cropping. Defaults to 10.

Source code in darts/src/darts/training/preprocess_planet_v2.py

def preprocess_planet_train_data(
    *,
    data_dir: Path,
    labels_dir: Path,
    train_data_dir: Path,
    arcticdem_dir: Path,
    tcvis_dir: Path,
    admin_dir: Path,
    preprocess_cache: Path | None = None,
    force_preprocess: bool = False,
    append: bool = True,
    device: Literal["cuda", "cpu", "auto"] | int | None = None,
    ee_project: str | None = None,
    ee_use_highvolume: bool = True,
    tpi_outer_radius: int = 100,
    tpi_inner_radius: int = 0,
    patch_size: int = 1024,
    overlap: int = 16,
    exclude_nopositive: bool = False,
    exclude_nan: bool = True,
    mask_erosion_size: int = 3,
):
    """Preprocess Planet data for training.

    The data is split into a cross-validation, a validation-test and a test set:

        - `cross-val` is meant to be used for train and validation
        - `val-test` (5%) random leave-out for testing the randomness distribution shift of the data
        - `test` leave-out region for testing the spatial distribution shift of the data

    Each split is stored as a zarr group, containing a x and a y dataarray.
    The x dataarray contains the input data with the shape (n_patches, n_bands, patch_size, patch_size).
    The y dataarray contains the labels with the shape (n_patches, patch_size, patch_size).
    Both dataarrays are chunked along the n_patches dimension.
    This results in super fast random access to the data, because each sample / patch is stored in a separate chunk and
    therefore in a separate file.

    Through the parameters `test_val_split` and `test_regions`, the test and validation split can be controlled.
    To `test_regions` can a list of admin 1 or admin 2 region names, based on the region shapefile maintained by
    https://github.com/wmgeolab/geoBoundaries, be supplied to remove intersecting scenes from the dataset and
    put them in the test-split.
    With the `test_val_split` parameter, the ratio between further splitting of a test-validation set can be controlled.

    Through `exclude_nopositve` and `exclude_nan`, respective patches can be excluded from the final data.

    Further, a `config.toml` file is saved in the `train_data_dir` containing the configuration used for the
    preprocessing.
    Addionally, a `labels.geojson` file is saved in the `train_data_dir` containing the joined labels geometries used
    for the creation of the binarized label-masks, containing also information about the split via the `mode` column.

    The final directory structure of `train_data_dir` will look like this:

    ```sh
    train_data_dir/
    ├── config.toml
    ├── cross-val.zarr/
    ├── test.zarr/
    ├── val-test.zarr/
    └── labels.geojson
    ```

    Args:
        data_dir (Path): The directory containing the Planet scenes and orthotiles.
        labels_dir (Path): The directory containing the labels and footprints / extents.
        train_data_dir (Path): The "output" directory where the tensors are written to.
        arcticdem_dir (Path): The directory containing the ArcticDEM data (the datacube and the extent files).
            Will be created and downloaded if it does not exist.
        tcvis_dir (Path): The directory containing the TCVis data.
        admin_dir (Path): The directory containing the admin files.
        preprocess_cache (Path, optional): The directory to store the preprocessed data. Defaults to None.
        force_preprocess (bool, optional): Whether to force the preprocessing of the data. Defaults to False.
        append (bool, optional): Whether to append the data to the existing data. Defaults to True.
        device (Literal["cuda", "cpu"] | int, optional): The device to run the model on.
            If "cuda" take the first device (0), if int take the specified device.
            If "auto" try to automatically select a free GPU (<50% memory usage).
            Defaults to "cuda" if available, else "cpu".
        ee_project (str, optional): The Earth Engine project ID or number to use. May be omitted if
            project is defined within persistent API credentials obtained via `earthengine authenticate`.
        ee_use_highvolume (bool, optional): Whether to use the high volume server (https://earthengine-highvolume.googleapis.com).
        tpi_outer_radius (int, optional): The outer radius of the annulus kernel for the tpi calculation
            in m. Defaults to 100m.
        tpi_inner_radius (int, optional): The inner radius of the annulus kernel for the tpi calculation
            in m. Defaults to 0.
        patch_size (int, optional): The patch size to use for inference. Defaults to 1024.
        overlap (int, optional): The overlap to use for inference. Defaults to 16.
        exclude_nopositive (bool, optional): Whether to exclude patches where the labels do not contain positives.
            Defaults to False.
        exclude_nan (bool, optional): Whether to exclude patches where the input data has nan values.
            Defaults to True.
        mask_erosion_size (int, optional): The size of the disk to use for mask erosion and the edge-cropping.
            Defaults to 10.

    """
    current_time = time.strftime("%Y-%m-%d_%H-%M-%S")
    logger.info(f"Starting preprocessing at {current_time}.")

    # Storing the configuration as JSON file
    train_data_dir.mkdir(parents=True, exist_ok=True)
    from darts_utils.functools import write_function_args_to_config_file

    write_function_args_to_config_file(
        fpath=train_data_dir / f"{current_time}.cli.json",
        function=preprocess_planet_train_data,
        locals_=locals(),
    )

    from stopuhr import Chronometer

    timer = Chronometer(printer=logger.debug)

    from darts.utils.cuda import debug_info

    debug_info()

    # Import here to avoid long loading times when running other commands
    import geopandas as gpd
    import pandas as pd
    import rich
    import xarray as xr
    from darts_acquisition import load_arcticdem, load_planet_masks, load_planet_scene, load_tcvis
    from darts_acquisition.admin import download_admin_files
    from darts_preprocessing import preprocess_v2
    from darts_segmentation.training.prepare_training import TrainDatasetBuilder
    from darts_segmentation.utils import Bands
    from darts_utils.tilecache import XarrayCacheManager
    from odc.stac import configure_rio
    from rich.progress import track

    from darts.utils.cuda import decide_device
    from darts.utils.earthengine import init_ee

    device = decide_device(device)
    init_ee(ee_project, ee_use_highvolume)
    configure_rio(cloud_defaults=True, aws={"aws_unsigned": True})
    logger.info("Configured Rasterio")

    labels = (gpd.read_file(labels_file) for labels_file in labels_dir.glob("*/TrainingLabel*.gpkg"))
    labels = gpd.GeoDataFrame(pd.concat(labels, ignore_index=True))

    footprints = (gpd.read_file(footprints_file) for footprints_file in labels_dir.glob("*/ImageFootprints*.gpkg"))
    footprints = gpd.GeoDataFrame(pd.concat(footprints, ignore_index=True))
    fpaths = {fpath.stem: fpath for fpath in _legacy_path_gen(data_dir)}
    footprints["fpath"] = footprints.image_id.map(fpaths)

    # Download admin files if they do not exist
    admin2_fpath = admin_dir / "geoBoundariesCGAZ_ADM2.shp"
    if not admin2_fpath.exists():
        download_admin_files(admin_dir)
    admin2 = gpd.read_file(admin2_fpath)

    # We hardcode these because they depend on the preprocessing used
    bands = Bands.from_dict(
        {
            "red": (1 / 3000, 0.0),
            "green": (1 / 3000, 0.0),
            "blue": (1 / 3000, 0.0),
            "nir": (1 / 3000, 0.0),
            "ndvi": (1 / 20000, 0.0),
            "relative_elevation": (1 / 30000, 0.0),
            "slope": (1 / 90, 0.0),
            "aspect": (1 / 360, 0.0),
            "hillshade": (1.0, 0.0),
            "curvature": (1 / 10, 0.5),  # TODO: Do we even want shift?
            "tc_brightness": (1 / 255, 0.0),
            "tc_greenness": (1 / 255, 0.0),
            "tc_wetness": (1 / 255, 0.0),
        }
    )

    builder = TrainDatasetBuilder(
        train_data_dir=train_data_dir,
        patch_size=patch_size,
        overlap=overlap,
        bands=bands,
        exclude_nopositive=exclude_nopositive,
        exclude_nan=exclude_nan,
        mask_erosion_size=mask_erosion_size,
        device=device,
        append=append,
    )
    cache_manager = XarrayCacheManager(preprocess_cache / "planet_v2")

    if append and (train_data_dir / "metadata.parquet").exists():
        metadata = gpd.read_parquet(train_data_dir / "metadata.parquet")
        already_processed_planet_ids = set(metadata["planet_id"].unique())
        logger.info(f"Already processed {len(already_processed_planet_ids)} samples.")
        footprints = footprints[~footprints.image_id.isin(already_processed_planet_ids)]

    for i, footprint in track(
        footprints.iterrows(), description="Processing samples", total=len(footprints), console=rich.get_console()
    ):
        planet_id = footprint.image_id
        try:
            logger.debug(f"Processing sample {planet_id} ({i + 1} of {len(footprints)})")

            if not footprint.fpath or (not footprint.fpath.exists() and not cache_manager.exists(planet_id)):
                logger.warning(f"Footprint image {planet_id} at {footprint.fpath} does not exist. Skipping...")
                continue

            def _get_tile():
                tile = load_planet_scene(footprint.fpath)
                arctidem_res = 2
                arcticdem_buffer = ceil(tpi_outer_radius / arctidem_res * sqrt(2))
                arcticdem = load_arcticdem(
                    tile.odc.geobox, arcticdem_dir, resolution=arctidem_res, buffer=arcticdem_buffer
                )
                tcvis = load_tcvis(tile.odc.geobox, tcvis_dir)
                data_masks = load_planet_masks(footprint.fpath)
                tile = xr.merge([tile, data_masks])

                tile: xr.Dataset = preprocess_v2(
                    tile,
                    arcticdem,
                    tcvis,
                    tpi_outer_radius,
                    tpi_inner_radius,
                    device,
                )
                return tile

            with timer("Loading tile"):
                tile = cache_manager.get_or_create(
                    identifier=planet_id,
                    creation_func=_get_tile,
                    force=force_preprocess,
                )

            logger.debug(f"Found tile with size {tile.sizes}")

            footprint_labels = labels[labels.image_id == planet_id]
            region = _get_region_name(footprint, admin2)

            with timer("Save as patches"):
                builder.add_tile_batched(
                    tile=tile,
                    labels=footprint_labels,
                    region=region,
                    sample_id=planet_id,
                    metadata={
                        "planet_id": planet_id,
                        "fpath": footprint.fpath,
                    },
                )

            logger.info(f"Processed sample {planet_id} ({i + 1} of {len(footprints)})")

        except (KeyboardInterrupt, SystemExit, SystemError):
            logger.info("Interrupted by user.")
            break

        except Exception as e:
            logger.warning(f"Could not process sample {planet_id} ({i + 1} of {len(footprints)}). \nSkipping...")
            logger.exception(e)

    builder.finalize(
        {
            "data_dir": data_dir,
            "labels_dir": labels_dir,
            "arcticdem_dir": arcticdem_dir,
            "tcvis_dir": tcvis_dir,
            "ee_project": ee_project,
            "ee_use_highvolume": ee_use_highvolume,
            "tpi_outer_radius": tpi_outer_radius,
            "tpi_inner_radius": tpi_inner_radius,
        }
    )
    timer.summary()

Training data structure

The train_data_dir must look like this:

train_data_dir/
├── config.toml
├── data.zarr/
└── metadata.parquet

The data.zarr is expected to be a zarr group containing a x and a y zarr array. This data contains the training data, hence images and labels - the shape of the x array must be [n, c, h, w] and of y [n, h, w] with n beeing the total number of samples, c the number of channels, h the height and w the width. The data must be complete, since splits and cross-validation folds are created on-the-fly by the training scripts.

metadata.parquet must contain at least the following columns:

• "sample_id": The id of the sample
• "region": The region the sample belongs to
• "empty": Whether the image has positive pixels The index must refer to the index of the sample in the zarr data.

config.toml must contain all configuration parameters necessary to preprocess the data from scratch. Further, it must contain information about the bands (channels) used, which will be used to setup the model. The configuration should lay under the darts key of the file.

Ideally, use the preprocessing functions explained above to create this structure.

Own preprocessing

If you want to use your own preprocessing, you can do so by either creating the data yourself or by using the darts_segmentation.training.prepare_training.TrainDatasetBuilder helper class.

The usage is quite simple:

from darts_segmentation.training.prepare_training import TrainDatasetBuilder
    from darts_segmentation.utils import Bands

bands = Bands.from_dict(
    {
        # "name": (scale, offset)
        "red": (1 / 3000, 0.0),
        "green": (1 / 3000, 0.0),
        "blue": (1 / 3000, 0.0),
    }
)

builder = TrainDatasetBuilder(
    train_data_dir=train_data_dir,  # The directory where the data is stored
    patch_size=patch_size, # The size of the patches to create
    overlap=overlap, # The overlap of the patches
    bands=bands, # The bands to use, expects the Bands class
    exclude_nopositive=exclude_nopositive, # Whether to exclude samples without positive pixels
    exclude_nan=exclude_nan, # Whether to exclude samples with NaN values
    mask_erosion_size=mask_erosion_size, # How much the mask should be eroded (increase size of nan-holes)
    device=device, # The device to use for preprocessing should be a torch.device
)

for tile, labels, region in your_data:
    # tile (your sample) should be an xarray Dataset with at least the bands specified above as variables
    # labels should be an geopandas GeoDataFrame
    builder.add_tile(
        tile=tile,
        labels=labels,
        region=region, # Region should be a str describing the region of your sample, can be arbitrary
        sample_id=sample_id, # A unique id for the sample
        metadata={
            ... # Any metadata you want to store with the sample, not mandatory
        },
    )

builder.finalize(
    {
        ... # Any metadata you want to store with in the final config, not mandatory
    }
)
